Compact Track Loaders
JCB Compact Track Loaders: High Performance, Versatile Machines
JCB Compact Track Loaders are designed in a similar fashion to the wheeled skid steer loaders. In that they are small, extremely manoeuvrable, compact machines with a single- arm powered lifting boom. The Side entry to the driver's cab results in a larger cab area and enhanced visibility over most competing brands. With excellent traction in both wet and dry conditions, JCB Track Skid Steers work well on uneven surfaces such as mud, gravel, snow, and soft ground.
Browse All Compact Track Loaders
The Advantages of JCB Compact Track Loaders
The compact design and high-performance durable rubber tracks make this machine ideally suited for working in harsh conditions across varying terrain types where larger machines could not operate. JCB’s compact track loader’s ability to access and operate in most working conditions means that they are one of the most versatile pieces of load- moving equipment available, the World’s Safest Track Skid Steer Loader.
Stability on Any Terrain
JCB Compact Track Loaders (CTL’s) are engineered for maximum stability and control in the toughest ground conditions. Unlike wheeled machines, CTLs use a wide rubber track system that spreads the machine’s operating weight to reduce ground pressure and improve flotation. This allows them to perform confidently on soft soil, mud, sand and uneven surfaces where wheeled loaders may struggle.
All models feature robust traction lugs that enhance grip and stability. Standard track widths include 320 mm on the 215T and 400 mm on the 270T and 300T, with optional 450 mm tracks available for even greater stability and flotation.
A low centre of gravity and strong Powerboom structure also contribute to excellent stability while working on slopes or handling heavy loads. Whether operating in harsh weather, rough terrain or loose ground conditions, JCB CTLs deliver reliable, safe performance across every job site.
Maximised Productivity
JCB Compact Track Loaders are designed to deliver high productivity, fast cycle times and strong hydraulic performance. Each model is powered by a fuel-efficient 74 hp (55 kW) engine that provides consistent power for both travel and attachment use.
The vertical lift design offers excellent reach and load-over height, allowing efficient loading into trucks, hoppers and high-sided containers. Rated Operating Capacities range from 732kg to 929kg, depending on the model, giving operators impressive strength for lifting, carrying and rehandling tasks.
New updates introduced across the CTL range include a 7-inch digital display, improved visibility through the updated windscreen, a reverse camera, auto idle and a consolidated control panel for easier operation. These enhancements help operators work faster and with greater accuracy throughout the day.
A smooth hydrostatic transmission allows maximum speed in both forward and reverse, with optional two-speed travel on many models for reduced travel time across the site.
Versatile Attachments for Every Job
JCB Compact Track Loaders are built to handle a wide variety of tasks thanks to excellent attachment compatibility. Each machine is equipped with a dedicated auxiliary hydraulic pump and an efficient hydraulic power management system that ensures full engine power is always available for loader and attachment functions.
Standard flow hydraulics deliver 18.5 gpm (70 lpm), ideal for general attachments. For more demanding tools, optional High Flow hydraulics provide up to 33 gpm (125 lpm) depending on the model. This ensures powerful, smooth operation for a wide range of attachments, including:
- Buckets
- Grapples
- Augers
- Sweepers
- Trenchers
- Breakers
- Planers
Hydraulic lines are protected beneath a steel guard on the Powerboom to reduce damage risk in harsh environments. Operators benefit from precise control through joystick-mounted roller switches, enabling smooth and accurate attachment handling.
With fast attachment changes and the ability to cover multiple tasks in one shift, JCB CTLs provide exceptional versatility for construction, landscaping, agriculture and industrial applications.
What are the main differences between Compact Track Loaders and Wheeled Skid Steer Loaders?
The main difference is in the undercarriage. A Compact Track Loader runs on rubber tracks, while a Skid Steer Loader operates on wheels. Tracks provide better traction, lower ground pressure and smoother travel on soft or uneven surfaces. Wheeled skid steers perform best on firm ground such as concrete or tarmac. Both machines are compact and versatile, but CTLs are better suited to challenging terrain.
What are the key advantages of a Compact Track Loader over other loader types?
Compact Track Loaders offer several advantages that make them ideal for demanding site conditions, including:
- Superior traction on soft, muddy or loose ground
- Lower ground pressure, which helps protect delicate surfaces
- Greater stability on slopes or uneven terrain
- Smoother travel compared to wheeled machines
- Strong breakout forces and lifting performance
- Excellent attachment compatibility for multipurpose work
These benefits make CTLs one of the most capable and versatile compact machines on the market.
What design features ensure that the Compact Track Loader provides enhanced visibility and operator comfort?
JCB Compact Track Loaders are designed with operator safety, comfort and visibility in mind. Key features include:
- Single side entry for safer cab access
- A large, low-profile boom for improved all-round visibility
- Spacious cabs with industry-leading visibility
- Ergonomic seat positioning and adjustable controls
- Smooth joystick operation with easy-to-use hydraulic controls
- Climate control and air suspension seat options for long working days
- Low noise levels and excellent cab sealing
These features help operators stay comfortable and maintain full awareness of their surroundings.
What types of working conditions is the Compact Track Loader best suited for?
Compact Track Loaders perform best in environments where surface conditions are soft or unstable. Ideal conditions include:
- Muddy or wet sites
- Loose soil, sand or clay
- Sloped or uneven ground
- Soft landscaping areas
- Ground restoration or forestry work
- Sites with poor traction or mixed terrain
Their track system provides excellent grip and stability where wheeled machines may struggle.
Are Compact Track Loaders as manoeuvrable as wheeled Skid Steer Loaders?
Yes, JCB Compact Track Loaders offer very similar manoeuvrability to wheeled skid steers. Both machine types can pivot within their own footprint and turn sharply in confined spaces. CTLs may feel slightly smoother in operation due to the tracks, and they provide better control on uneven ground. For tight yards, narrow access points and busy sites, both are excellent choices, but the CTL has the added benefit of superior traction.
Interested In Used Machines?
Scot JCB offer a wide range of used heavy equipment from some of the world's top manufacturers.
Related Machinery

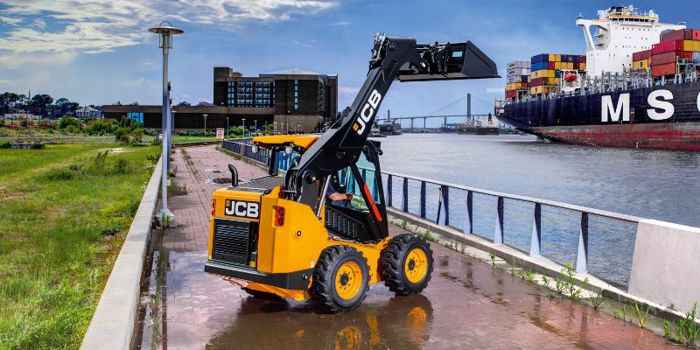

Skid Steer Loaders

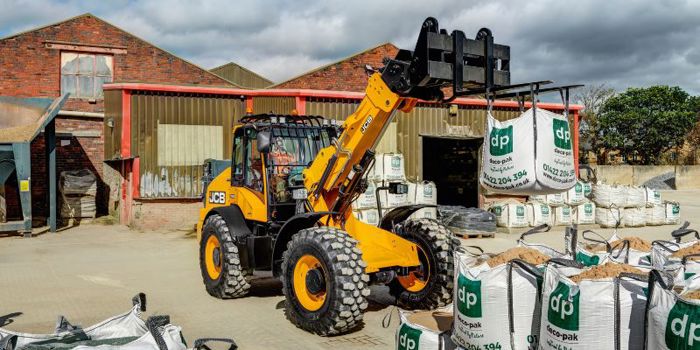

Telescopic Wheel Loaders
