Skid Steer Loaders
JCB Skid Steer Loaders: Performance, Features & Applications

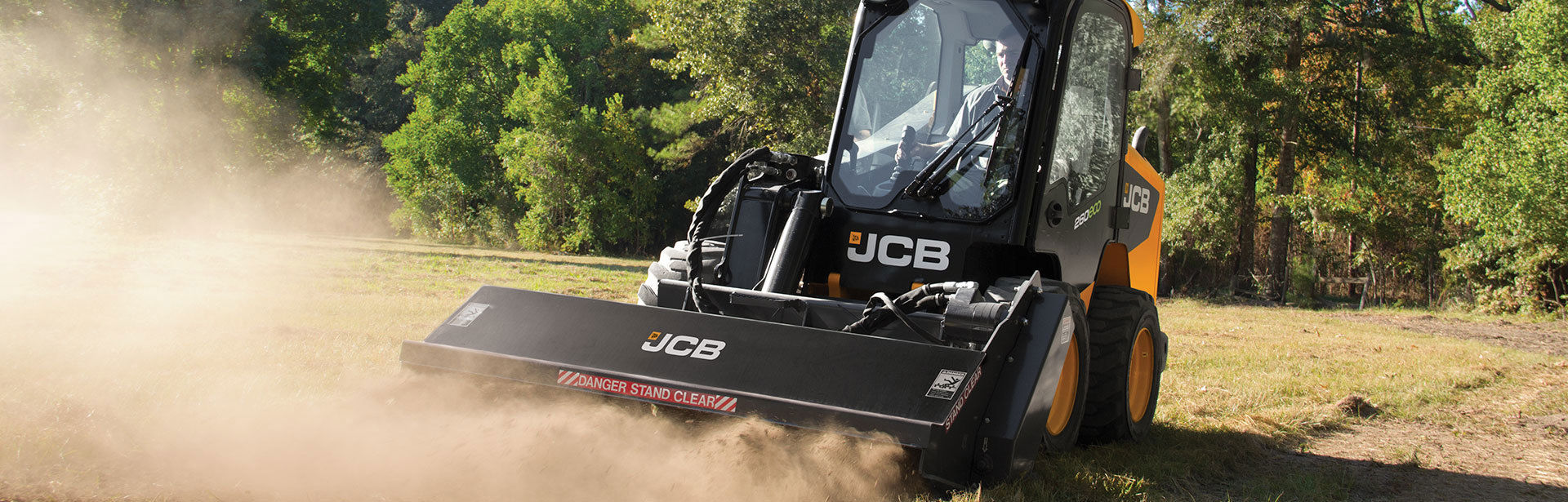

A Skid Steer Loader is a small machine built on a rigid frame with an engine powered lift arm or arms. They are extremely manoeuvrable and are capable at turning on a zero radius, effectively pirouetting in place. This makes them ideal machines for applications that require a compact, agile loader. Like other front end loaders, Skid Steer Loaders are effective at moving materials from one location to another. They can also be fitted with a selection of labour-saving tools and attachments. The JCB Skid Steer Loader range design was refreshed using inspiration from the popular, class leading loadall Telescopic Handler range. The updated design incorporates a fresh layout with a single boom and side entry to the driver’s cab, resulting in drastically improved driver comfort and visibility over other brands of Skid Steer Loaders.
Browse Skid Steer Loaders
Why Choose JCB Skid Steer Loaders
JCB Skid Steer Loaders are engineered to deliver exceptional performance, safety and reliability for construction, landscaping, agriculture and industrial applications. Designed around the operator, every model in the range offers unmatched visibility, class-leading safety features and outstanding hydraulic power. All machines feature the unique JCB Powerboom design with safe side-door entry, giving operators superior stability and confidence when working in tight or challenging environments.
With strong build quality, intuitive controls and a new 7-inch digital display introduced across the range, JCB skid steers offer the perfect combination of comfort, durability and productivity for demanding work sites.
Wide Range of Models
The JCB skid steer range includes both small and large platform machines, ensuring that operators can choose the right size, lift capacity and footprint for their job. Current wheeled models include the 215, 270 and 300, each offering vertical lift for excellent reach and loading height. These models cover operating weights from 703kg to 1,235kg and offer robust rated operating capacities suitable for construction, utilities, waste handling and more.
Small platform models are ideal for tight or urban spaces, while larger platform machines deliver increased power, stability and visibility for bigger sites. All models share JCB’s commitment to operator comfort, visibility and straightforward servicing.
Technical Specifications
JCB Skid Steer Loaders are powered by efficient 74hp (55kW) engines, with smooth hydrostatic transmissions that provide full power in both forward and reverse.
Key performance specifications include:
- Vertical lift geometry for maximum reach and load-over height
- Pin heights up to 3.2m on larger models
- Rated Operating Capacities from 703kg to 1,235kg depending on model
- Standard flow hydraulics delivering 18.5gpm (70lpm) for attachments
- Optional High Flow hydraulics on select models, rising to 31gpm (120lpm) for more demanding tools
Every machine also benefits from a modern operator environment with a 7-inch touch display, reverse camera, job timer, auto idle and improved visibility through the updated windscreen design.
Robust Strength and Durability
JCB skid steers are built for long service life in harsh environments. The single-arm Powerboom design provides excellent structural strength and allows hydraulic lines to be routed safely under a protective steel guard. This reduces the risk of damage on busy or uneven sites.
Heavy duty steel bodywork, reinforced chaincases and high-specification off-road tyres provide additional durability. The machines also feature
- Strong breakout forces on larger models
- High tipping loads for stable lifting and loading
- Robust cooling systems with variable-speed cooling fans
- Full ROPS and Level 1 FOPS protection for operator safety
Together, these features make JCB skid steers ideal for construction, demolition, utility reinstatement and industrial environments where reliability is essential.
Advanced Hydraulic Performance
Hydraulic performance is central to the capability of JCB Skid Steer Loaders. Each machine features a dedicated auxiliary hydraulics pump for attachments, ensuring smooth, controlled and responsive operation. Standard flow hydraulics are fitted as standard, providing 18.5gpm, while optional High Flow packages increase output to 30–33gpm depending on model. This allows operators to use a wide variety of powered attachments with ease.
Hydraulic lines are positioned safely along the Powerboom under a steel guard, reducing downtime and protecting against impact. Joystick roller switches provide progressive hydraulic flow, giving the operator precision control of tools such as sweepers, augers, planers, breakers and grapples. These machines also feature JCB’s hydraulic power management system, which ensures maximum power availability for both loader functions and attachments.
What is the difference between a standard loader and a skid steer loader?
A standard loader is designed mainly for loading, carrying and bulk material handling using a front bucket, while a skid steer loader is much more compact and manoeuvrable. A skid steer turns by skidding its wheels, which allows it to pivot within its own footprint and work in very tight spaces. Skid steers are also highly versatile because they can use a wide range of hydraulic attachments, making them suitable for many different tasks.
What are skid steer loaders used for?
Skid steer loaders are used for a wide variety of jobs thanks to their compact size and strong hydraulic performance. Common uses include:
- Landscaping and ground preparation
- Construction, demolition and site clearance
- Road maintenance and utilities work
- Recycling and waste handling
- Agriculture and yard work
- Snow clearing and seasonal maintenance
With the right attachments, a skid steer can dig, grade, lift, sweep, break concrete and much more.
What are the main advantages of a skid steer loader?
Skid steers provide excellent flexibility on busy or restricted sites. Key advantages include:
- Compact size for working in tight or confined areas
- Highly responsive controls with the ability to turn within the machine’s own footprint
- Strong lift performance relative to machine size
- Excellent attachment compatibility
- Fast travel and easy manoeuvring in cluttered spaces
- High visibility and operator comfort in JCB models
These strengths make skid steers ideal for contractors who need a flexible machine that can handle multiple tasks in one day.
In which types of environments does a JCB Skid Steer Loader excel?
A JCB skid steer loader performs best in environments where space or access is limited. It is well-suited to:
- Urban construction sites
- Indoor or partially enclosed work areas
- Landscaping projects with narrow access points
- Recycling centres and waste facilities
- Agriculture yards and barns
- Roadside or utility works that require compact equipment
JCB’s single side entry cab and excellent visibility also improve safety in busy environments.
On what kinds of ground, terrains or job types is a skid steer loader most suitable?
A skid steer loader works best on firm, stable surfaces such as concrete, tarmac, compacted ground or hard packed soil. These conditions allow the wheels to grip effectively and provide maximum pushing power.
Skid steers are most suitable for:
- Loading and stockpiling
- Demolition and removal work
- Landscaping preparation
- Forklifting and material handling
- Planing, sweeping and surface maintenance
- Utility and groundworks tasks

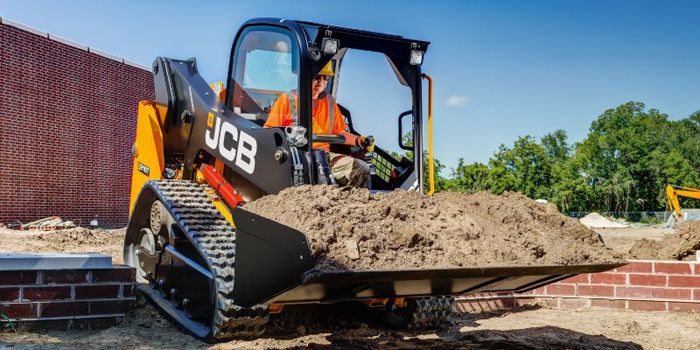

For soft or muddy terrain, a JCB Compact Track Loader may be the better option as its tracks provide improved traction and flotation.
Interested In Used Machines?
Scot JCB offer a wide range of used heavy equipment from some of the world's top manufacturers.
Related Machinery

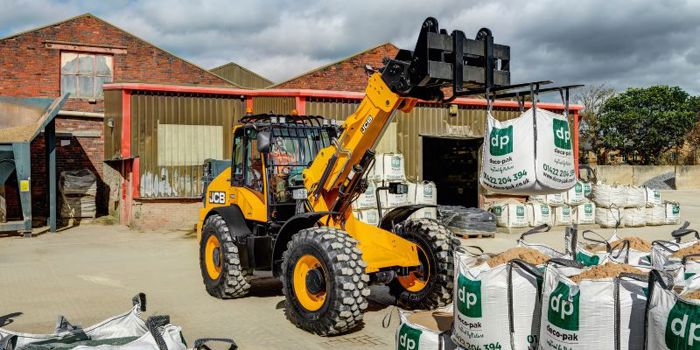

Telescopic Wheel Loaders
